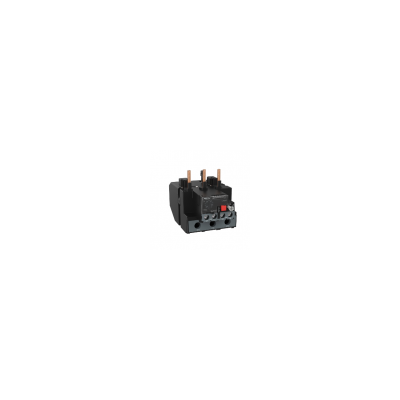

产品系列 EasyPact 产品名称 EasyPact D3N 产品类型
E型3极热过载继电器 产品短名 LRN 继电器应用 电动机保护 缺相敏感性 Tripping current I 30 % of Ir on one phase, the others at Ir conforming to IEC 60947-4-1 补充信息 产品适用范围 LC1N80...95 适用范围 EasyPact D3N LC1N 网络类型 AC 网络频率 50...60 Hz 安装方式 Under contactor Plate, with specific accessories Rail, with specific accessories 热脱拖扣等级 等级 10A 符合 IEC 60947-4-1 信号指示功能 继电器脱扣指示器 继电器设定范围 55…70 A 脱扣阈值 1.14 +/- 0.06 Ir conforming to IEC 60947-4-1 抗冲击、震动性能 Shocks: 6 Gn for 11 ms conforming to IEC 60068-2-7 Vibrations: 3 Gn conforming to IEC 60068-2-6 辅助触点类型 1 NO + 1 NC 约定发热电流 [Ith] 5 A for signalling circuit 额定工作电压 [Ue] <= 690 V AC 与继电器配合使用的熔丝 125 A gG for power circuit 80 A aM for power circuit 5 A gG 适用 信号回路 额定绝缘电压 [Ui] 690 V conforming to IEC 60947-4-1 额定冲击耐受电压 [Uimp] 6 kV 本地信号指示 Trip indicator 控制类型 Push-button red stop: Push-button green reset: 温度补偿 -20…60 °C 接线能力 信号回路: 螺栓紧固 2 1…2.5 mm2 电缆选型: 软线 不带篐线端子 信号回路: 螺栓紧固 2 1…2.5 mm2 电缆选型: 软线 带篐线端子 Signalling circuit: screw clamp terminals 2 1…2.5 mm2 - cable stiffness: solid without cable end Power circuit: screw clamp terminals 1 4…35 mm2 - cable stiffness: flexible without cable end Power circuit: screw clamp terminals 1 4…35 mm2 - cable stiffness: flexible with cable end Power circuit: screw clamp terminals 1 4…35 mm2 - cable stiffness: solid without cable end 紧固扭矩 9 N.m 通过 螺栓紧固 高度 54 mm 宽度 70 mm 深度 113 mm 产品净重 0.51 kg 环境 符合标准 IEC 60947-4-1 GB 14048 产品认证 CCC 符合指令 RoHS REACH 防护措施 TH conforming to IEC 60068 IP 保护等级 IP20 符合 IEC 60529 环境温度 -20…60 °C without derating conforming to IEC 60947-4-1 -20…70 °C with derating 贮存环境温度 -60…80 °C 耐火及耐异常高温能力 850 °C conforming to IEC 60068-2-1 绝缘性能 6 kV at 50 Hz conforming to IEC 60255-5 电磁兼容性 Surge withstand: 6 kV conforming to IEC 60801-5 包装单位 包装重量 0.51 KG
